VOLTAGE DOUBLER


expand your tone

Grainy Overlay 5 Light.png

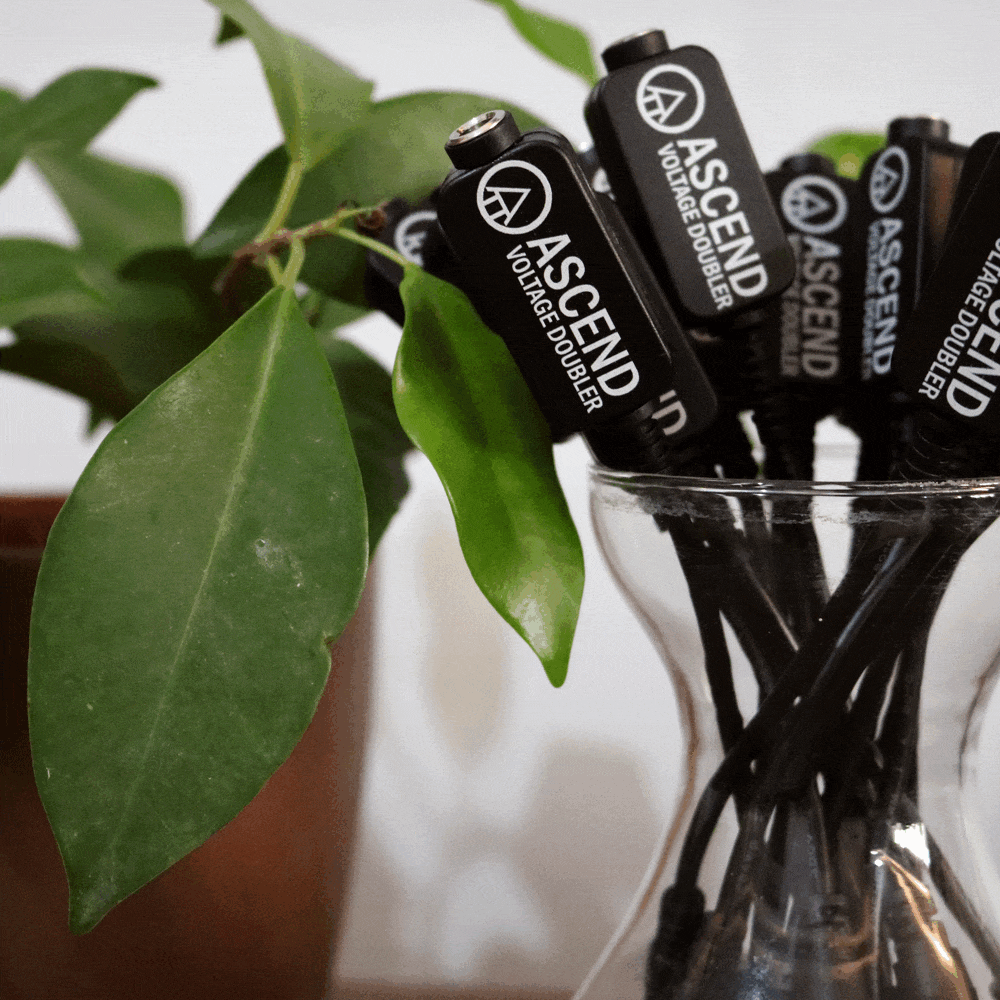

The Attic Audio Ascend Voltage Doubler gives you the flexibility to run your pedals at a higher voltage with your standard 9V-12V power supply setup.

​

  • Benefit from more clarity and volume output

  • Compatible with most analog effects. Generally sounds best with overdrives, compressors, preamps and modulation effects.​​

  • Tiny form factor which makes it easy to place on a pedalboard

  • 18V-24V Output from 9V-12V Voltage Input

Ibanez TS9 (9V)
Ego Compressor (9V)
BOSS FA-1 (9V)
Ibanez TS9 (18V)
Ego Compressor (18V)
BOSS FA-1 (18V)
Specs

  • Small in Size (2cm x 4cm) and a short cable (13.5cm) with gland

  • Standard Centre Negative Input and Output

  • Voltage Input (9V-12V)

  • Up to 80mA Output Current

  • Includes Reverse Polarity Protection

  • Filtered Voltage Output

  • Lifetime Warranty

  • Can I use this with any power supply?
    Generally yes, as long as the output is centre negative and between 9VDC and 12VDC. The barrel plug is a standard 2.1mm x 5.5mm.
  • Can I use this with any analog pedal?
    It depends, if the pedal manufacturer states that the pedal can accept voltages up to 18VDC or 24VDC, then yes. Generally, most drives and compressors accept up to 18VDC but always double check with your pedal manufacturer. Feel free to drop us a message to let us help you check if your pedal is compatible.
  • Can I use this with digital pedals?
    Probably not, as most digital pedals cannot work on anything higher than 9VDC. There are a few digital pedals that work on 18VDC however. Moreover, a digital pedal will not benefit from the same advantage (added headroom) as running your analog pedals at a higher voltage.
